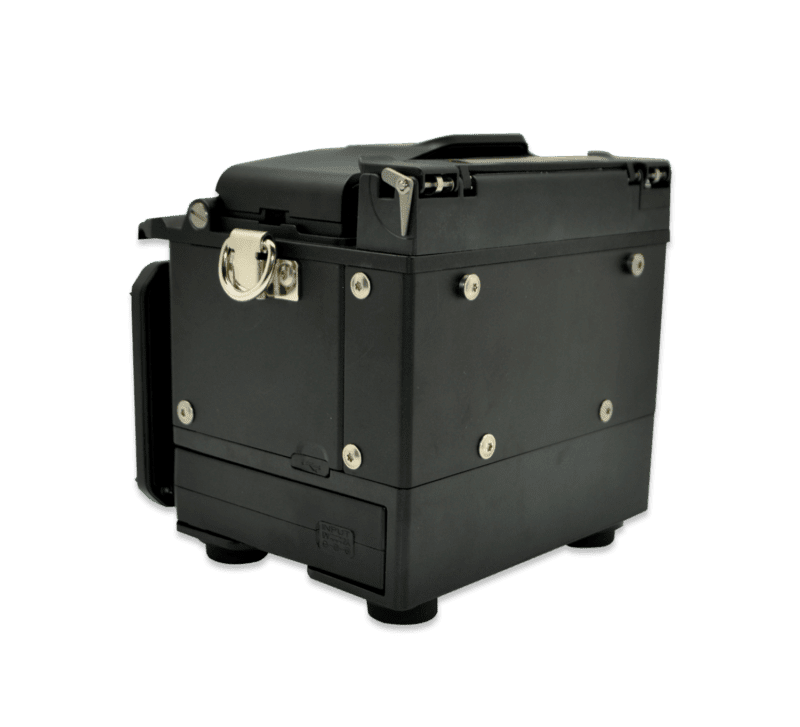

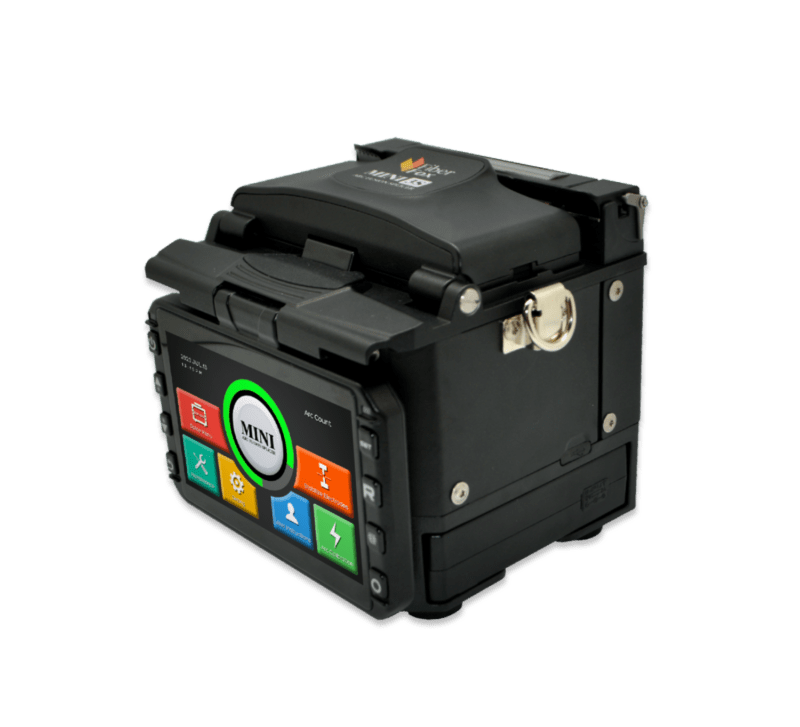

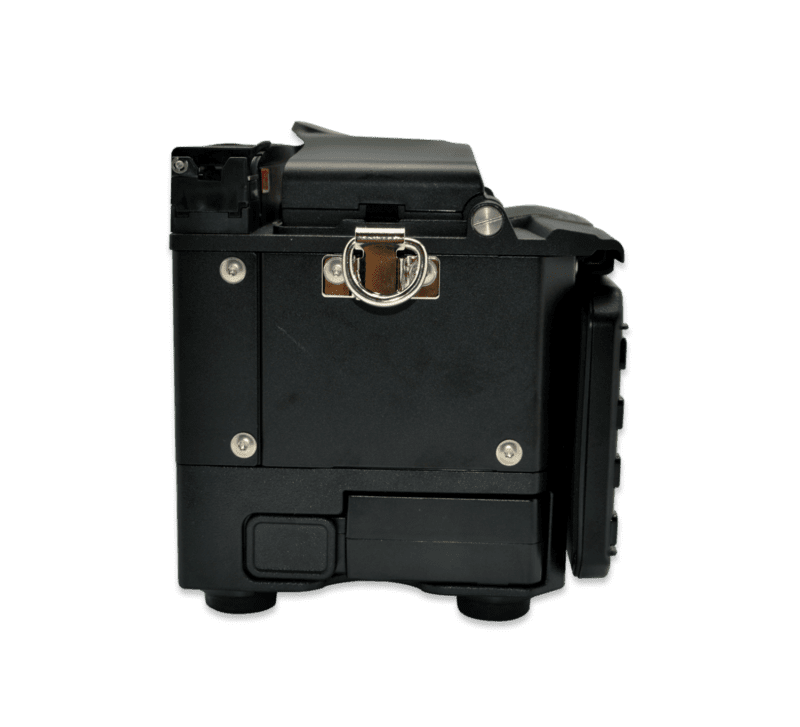

Splicing
Method
Active Alignment (DAA: Digitalized Active Alignment)
Splicing
Loss
SM(0.03dB) / MM(0.02dB) / OS(0.05dB) / NZOS(0.05dB), RL: >>60dB
Splicing
Time
SM Mode : B Sec.
Splicing
Mode
139 modes (Pre-set: 11 / User set-up: 128)
Splicing
Attenuation
Available rage : 0.1 - 20dB
Applicable fiber (cable)
Fiber Type
SM (ITU-T G652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZOS (ITU-T G.655)
Applicable fiber (cable)
Coating Diameter
100-3,000um
Applicable fiber (cable)
Cladding Diameter
80-150um
Applicable fiber (cable)
Cleaved Length
<250Um Coating : 5-16mm >250Um Coating :8-16mm
Heating
Time
Ave. 18 Sec.
Heating
Mode
37 modes (Pre-set: 5 / User set-up: 32)
Heating
Applicable Sleeve
20 - 60mm
Hardware
Connectivity (link to PC)
USB(5Pin Mini-BI
Hardware
Electrode Life span
3,500 arcs
Hardware
Data Storage
Splice record : 10,000 / lmage : 2,000
Hardware
Fiber detecting
Dual CCD camera with LED emitting system
Hardware
Illumination
LEO Spot light
Hardware
Display

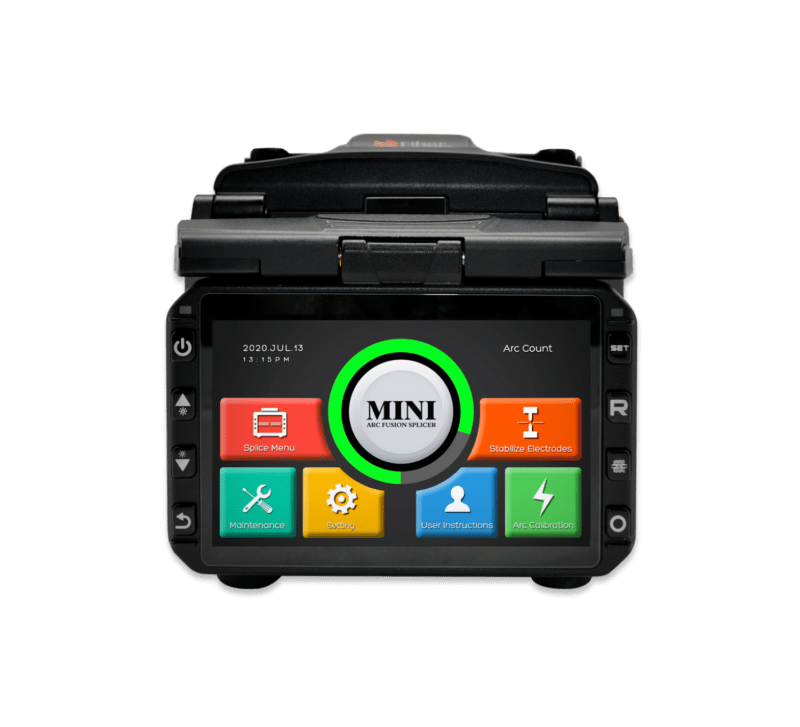

Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)
Hardware
Battery
Li-ion 11.1V 3000mAh 200 cycles (Spliclng & Heatlng) Storage Temperature : -20-40 C
Hardware
Power Supply
AC 100-240V input or DC 12.6V 1.BA
Hardware
Fiber Display
X/Y (Single image) : 260x
Hardware
Weight
1.1 kg (with battery, 1 .3kg)
Hardware
Size
123 x 114 x 126mm (L x W x H)
Reliability
Wind Protection
Wind speed: 15m/s (max)
Reliability
Operating Environment
Altitude: 0-5,000m Temperature: -10-50°C Humidity: 0-95%RH
Reliability
Storage Condition
Temperature: -20 to 60°C Humidity: 0-95%RH
Reliability
Pull Test
1.96-2.25N(standard)
